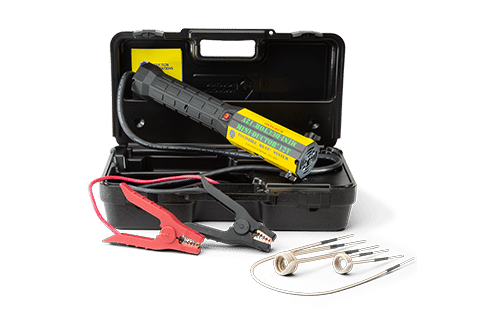

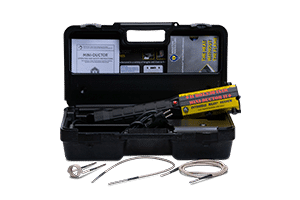

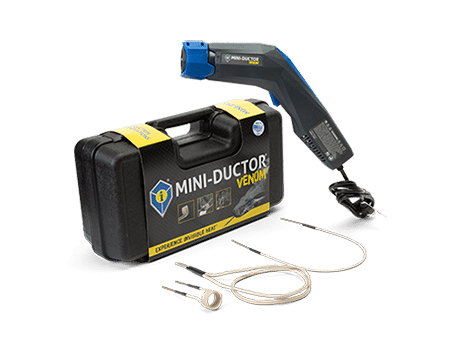

| Name / Model |  Mini-Ductor® II+ |  Mini-Ductor® 12V |  Mini-Ductor® Venom |
|---|---|---|---|
| Part Number | MD-800P | MD-500 | MDV-888 |
| Introduced | 2014 | 2014 | 2016 |
| End of Life | Available | Available | Available |
| Input Power | 230V | 12V with Battery Hook-Up | 230V |
| Power Output | 1000W | 840W | 1000W |
| Standby Power | Energy Efficient | Energy Efficient | Energy Efficient1 |
| Size | 14.75″L x 2.75″D | 14.75″L x 2.75″D | 14.5″L x 3.25″D |
| Ergonomic Grip | Yes | Yes | Yes |
| Weight | 2.8 lbs. | 5.6 lbs. | 2.6 lbs |
| Housing | Military Grade Impact Resistant Plastic | Military Grade Impact Resistant Plastic | Military Grade Impact Resistant Plastic |
| Enclosed Housing | Yes | Yes | Yes |
| HDT | Extruded Aluminum | Extruded Aluminum | Extruded Aluminum2 |
| Circuit Boards | SMT Design | SMT Design | SMT Design |
| Cooling | Yes | Yes | Yes3 |
| LED Illumination | Yes | Yes | Yes with On/Off Switch |
| Components Secured | Yes | Yes | Yes |
| Fault Monitor with LED | No | No | Yes4 |
| Coil Fastening | Thumb Screws | Thumb Screws | Twist Lock5 |
| Warranty | 1 Year | 1 Year | 2 Years |
| Activation | Push Button | Push Button | Trigger |
| Design | Ergonomic Cylinder | Ergonomic Cylinder | Pistol Grip |
| Safety Certified | Yes | Yes | Yes |
1 When fan is operating in standby the power may be up to 1.5W; when fan stops <1/10thW
2 Extruded Aluminum with copper thermal enhancement
3 Intelligent cooling improves cycle time
4 Fault monitor indicates when a condition occurred that might cause damage; the monitor automatically shuts down and prevents damage from various conditions
5 Locking mechanism for easy insertion and extraction of work coils
